Locking Mechanism Helper

Following yesterdays adventure - and issues - with the wheel locking mechanism it got me thinking, can I make a tool to help with this if it happens in future?

The problem

My right wheels locking mechanism got stuck as it needed a bit of lubrication.

The mechanism that forms part of the axle uses a double ended nut and you need to have a special double pronged tool to keep the plastic outer nut still whilst adjusting a flat head screw on the inner side of the nut - loosening or tightening the screw increases/decreases the tension and in turn allows the ball bearings to move freely.

Of course I didn't have the special pronged tool so I managed to cause some slight damage to one of the holes on the outer nut but hey, we live and learn... and now I've made a tool to help if I ever have this problem in future.

The solution

I had my thinking cap on today and to save any further damage in future I designed a tool that perfectly fits between the two holes of the outer nut and acts like a key making it easy to keep the outer nut steady whilst attacking the inner with a screw driver to tighten/loosen the mechanism.

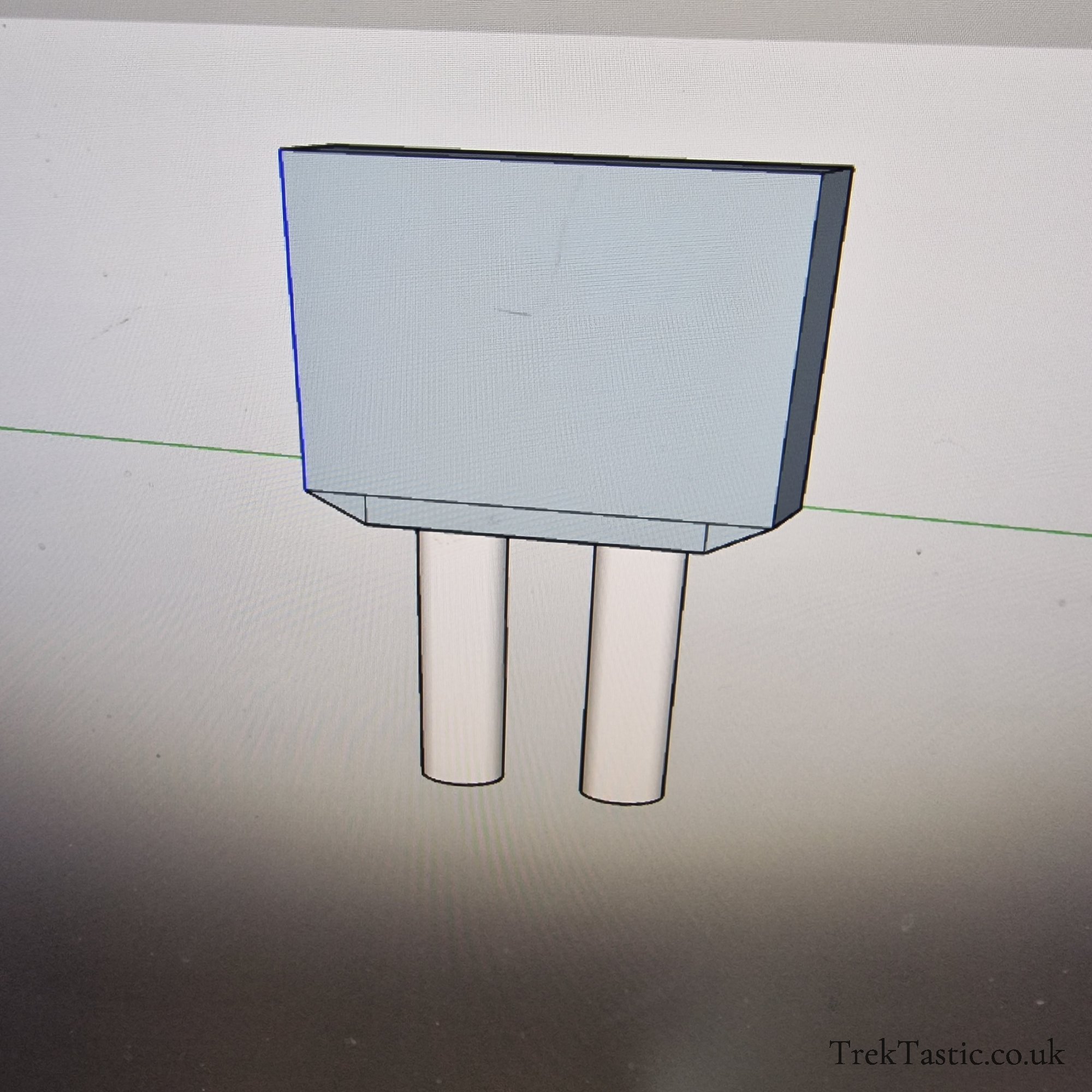

It took about an hour to plan and create in my CAD software and about 30 minutes printing to have something I can call a success!

If you own a Trekinetic chair and think on of these tools could be useful to you, please let me know and I can send you one.

As for fixing the mechanism, grease... and lots of it! Everywhere. It now works like a dream.

P.S. If you're hiring on your design team Trekinetic of Mountain Trike hit me up! :)
